| Brand Name : | HSBRK |
| Model Number : | 1/8" |
| Certification : | DOT,COQ |
| Price : | US$0.65-0.85/Meter |
| Payment Terms : | L/C, T/T, Western Union,Paypal |
| Supply Ability : | 6000Meters/Day |
| Delivery Time : | 5-8 work days |

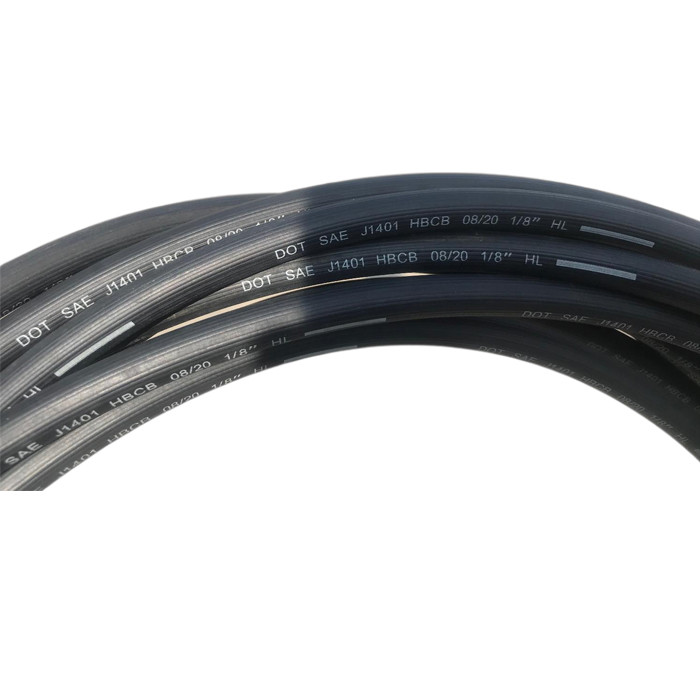

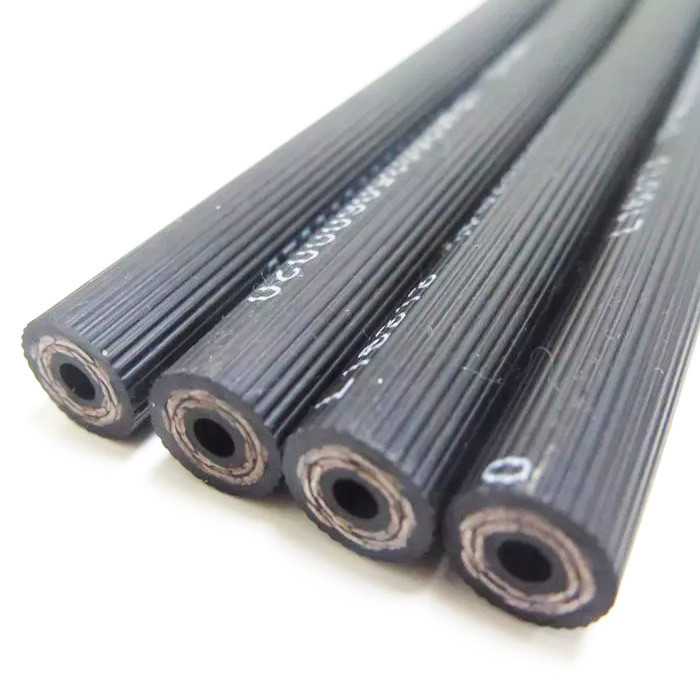

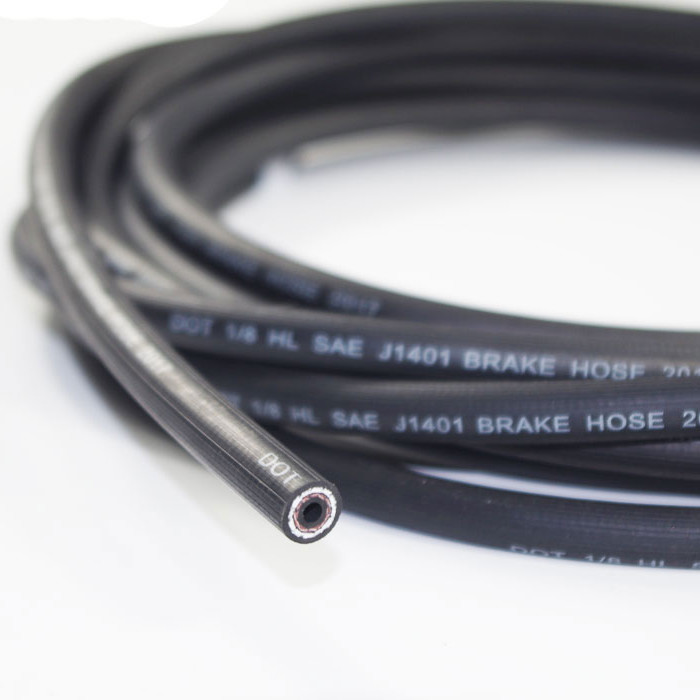

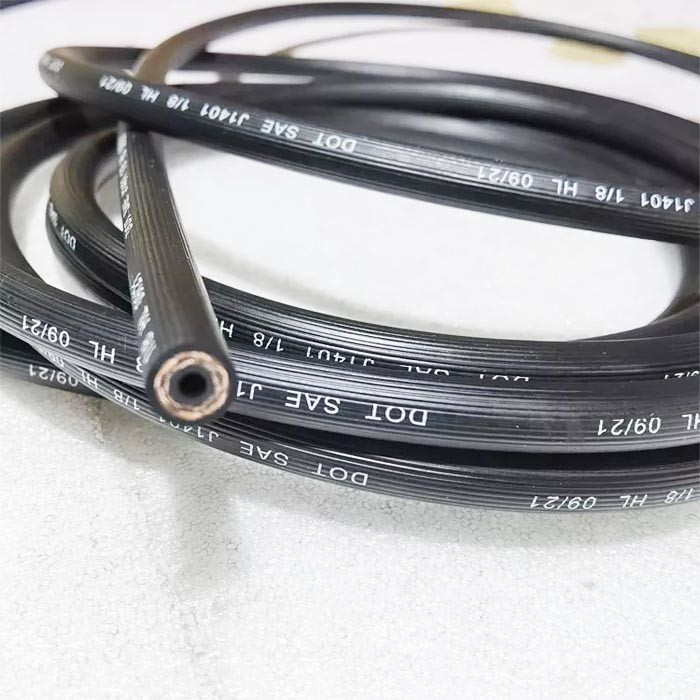

Flexible Rubber Brake Hoses
Introduce:
3.2*10.5mm Rubber EPDM Brake Hose consist of five layers :
Our rubber EPDM brake hose conform to SAE J1401 and DOT standard FMVSS106.And each rubber EPDM brake hose have a water pressure test under 27Mpa 180 seconds which can gurantee our rubber EPDM brake hose is perfect quality before packing and shipping.
Specification:
| NO. | Inner diameter | Outer diameter | Burst Pressure(Mpa) | Expansion Amount (ml/m) | Flexural fatigue test | Low temperature ℃ | Pulse Resistance 0-22Mpa | Ozone resistant 50±5pphm.40℃ | |
| 6.9Mpa | 10.3Mpa | ||||||||
| RBRH-A | 3.2±0.1mm | 10.5±0.2mm | ≥55 | ≤1.15 | ≥35h | -55 | 150times | 70±2h | |
| RBRH-B | 3.2±0.2mm | 10.5±0.2mm | ≥49 | ≤0.54 | ≤0.69 | ≥35h | -40 | 150times | 70±2h |
| RBRH-C | 3.2±0.2mm | 10.5±0.2mm | ≥49 | ≤1.08 | ≤1.38 | ≥35h | -40 | 150times | 70±2h |
Main application: Used in the brake and clutch pipeline system of various passenger vehicles such as cars, commercial vehicles, SUVs and mini cars
Technical Features: high temperature and pulse resistance, excellent flexing
performance, stable and suitable expansion
Executive standard: GB16897-2010 SAE J1401 DOT
Hengshui Brake Hose Machinery Co. Ltd is a professional manufacturer of brake hose and fittings, located HengShui Citywhere produce 80% brake hoses in the world.Since 2005, HSBRK focused on the development and production of various types of brake hose and fittings .In the passed 17 years ,we master abundant mature technology on the stainless steel wire braiding,PU/PVC coating,brake hose assembly crimping and assembly pressure test.Now we are producing the PTFE brake hose 20,000meters and brake hose assembly 5000 pcs per day .
|
|
