Supplier of 100% Stainless Steel Braided Brake Lines,Clutch Lines and Brake Accessories !
3 Years
| Ask Lasest Price | |
| Brand Name : | HSBRK |
| Model Number : | 1/8" |
| Certification : | DOT,COQ |
| Price : | US$0.65-0.85/Meter |
| Payment Terms : | L/C, T/T, Western Union,Paypal |
| Supply Ability : | 6000Meters/Day |
| Delivery Time : | 5-8 work days |

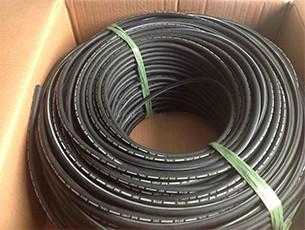

1/8" DOT SAE J1401 Hydraulic Rubber EPDM Brake Hose Lines Car Auto Motorcycle
Introduce:
SAE J1401 rubber EPDM brake hose lines consists of five layers.(EPDM rubber inner tube,first reinforcement textile braid in PVA, adhesive coating,second reinforcement textile braid in PVA,outer protective cover of EPDM rubber.)Our rubber EPDM brake hose conform to SAE J1401.Each rubber EPDM brake hose assembly is pressure tested up to 1450 P.S.I. to ensure the safety.
Construction:
Specification:
| NO. | Inner diameter | Outer diameter | Burst Pressure(Mpa) | Expansion Amount (ml/m) | Flexural fatigue test | Low temperature ℃ | Pulse Resistance 0-22Mpa | Ozone resistant 50±5pphm.40℃ | |
| 6.9Mpa | 10.3Mpa | ||||||||
| RBRH-A | 3.2±0.1mm | 10.5±0.2mm | ≥55 | ≤1.15 | ≥35h | -55 | 150times | 70±2h | |
| RBRH-B | 3.2±0.2mm | 10.5±0.2mm | ≥49 | ≤0.54 | ≤0.69 | ≥35h | -40 | 150times | 70±2h |
| RBRH-C | 3.2±0.2mm | 10.5±0.2mm | ≥49 | ≤1.08 | ≤1.38 | ≥35h | -40 | 150times | 70±2h |
Main application: Used in the brake and clutch pipeline system of various passenger vehicles such as cars, commercial vehicles, SUVs and mini cars
Technical Features: high temperature and pulse resistance, excellent flexing
performance, stable and suitable expansion
Executive standard: GB16897-2010 SAE J1401 DOT
Hengshui Brake Hose Machinery Co. Ltd is a professional manufacturer of brake hose and fittings, located HengShui Citywhere produce 80% brake hoses in the world.Since 2005, HSBRK focused on the development and production of various types of brake hose and fittings .In the passed 17 years ,we master abundant mature technology on the stainless steel wire braiding,PU/PVC coating,brake hose assembly crimping and assembly pressure test.Now we are producing the PTFE brake hose 20,000meters and brake hose assembly 5000 pcs per day .
|
|
