Supplier of 100% Stainless Steel Braided Brake Lines,Clutch Lines and Brake Accessories !
3 Years
| Ask Lasest Price | |
| Brand Name : | HSBRK |
| Model Number : | 1/8" |
| Certification : | DOT,COQ |
| Price : | US$0.65-0.85/Meter |
| Payment Terms : | L/C, T/T, Western Union,Paypal |
| Supply Ability : | 6000Meters/Day |
| Delivery Time : | 5-8 work days |

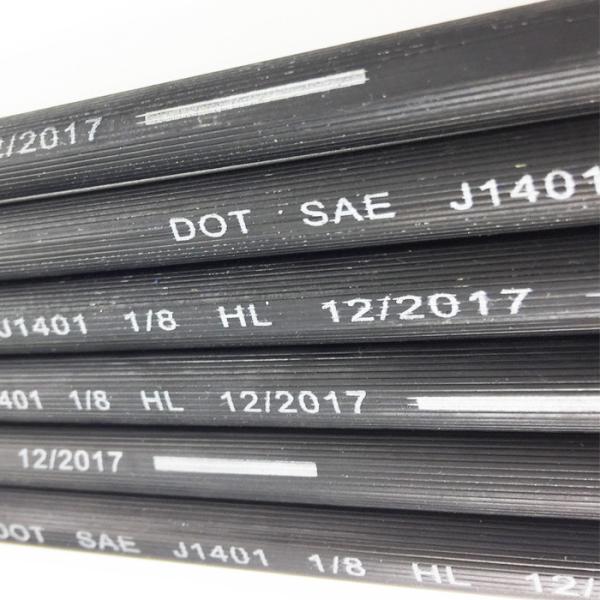

EPDM Flexible Hydraulic Rubber EPDM Brake Hose SAE J1401 Hydraulic Brake Hose
| Specifications | |
Tube:EPDM Rubber Reinforcement:High strength synthetic fiber; Middle layer:Using viscosity strengthen middle rubber between reinforcement to provide h-igh dynamic capability Cover:EPDM Rubber | Standard: SAEJ1401,FMVSS-106 ,GB16897 |
Certification: TS16949,DOT,CCC | |
Working Temperature: -40ºC to + 120ºC | |
Packaging: In seaworthy packing or according to customers' requirements | |
Applications: Used in hydraulic brake systems to transmit and contain the fluid pressure medium used to apply force to the vehicle's brakes. | |
Advantage: 1.Offer OEM service, Car make Volkswagen,Toyota,Honda,Hyundai,Nissan,Audi,Buick,Ford...... 2.Best After-sales Service 3.Accept small order 4.Perfect heat and ozone resistance. | |
| NO. | Inner diameter | Outer diameter | Burst Pressure(Mpa) | Expansion Amount (ml/m) | Flexural fatigue test | Low temperature ℃ | Pulse Resistance 0-22Mpa | Ozone resistant 50±5pphm.40℃ | |
| 6.9Mpa | 10.3Mpa | ||||||||
| RBRH-A | 3.2±0.1mm | 10.5±0.2mm | ≥55 | ≤1.15 | ≥35h | -55 | 150times | 70±2h | |
| RBRH-B | 3.2±0.2mm | 10.5±0.2mm | ≥49 | ≤0.54 | ≤0.69 | ≥35h | -40 | 150times | 70±2h |
| RBRH-C | 3.2±0.2mm | 10.5±0.2mm | ≥49 | ≤1.08 | ≤1.38 | ≥35h | -40 | 150times | 70±2h |
Executive standard:
GB16897-2010 SAE J1401 DOT
Hengshui Brake Hose Machinery Co. Ltd is a professional manufacturer of brake hose and fittings, located HengShui Citywhere produce 80% brake hoses in the world.Since 2005, HSBRK focused on the development and production of various types of brake hose and fittings .In the passed 17 years ,we master abundant mature technology on the stainless steel wire braiding,PU/PVC coating,brake hose assembly crimping and assembly pressure test.Now we are producing the PTFE brake hose 20,000meters and brake hose assembly 5000 pcs per day .
|
|
