| Brand Name : | HSBRK |
| Model Number : | MBRK-24 |
| Certification : | DOT,CQC |
| Price : | Negotiations |
| Payment Terms : | L/C, T/T, Western Union,Paypal |
| Supply Ability : | 5000 Pieces/Day |
| Delivery Time : | 10 Work Days |

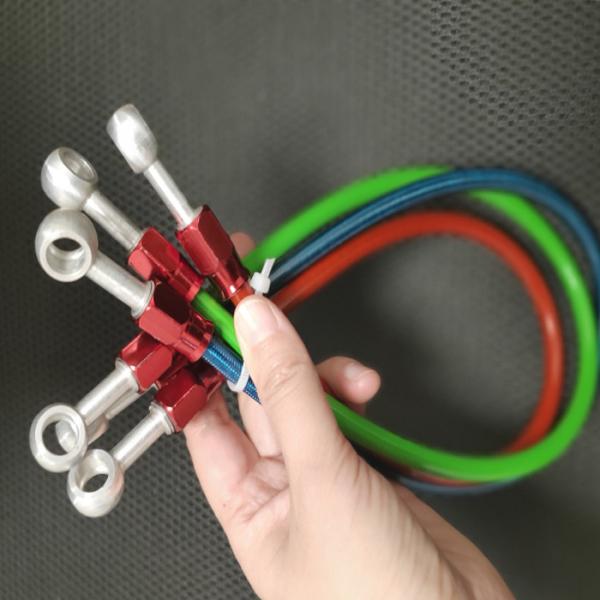

SAE J1401 Auto Parts Rubber Industrial Brake Hose Assembly
Discription
Stainless steel motorcycle brake hose assembly will enhance 20% braking effect than the rubber brake hose which will bring you the braking power you can feel.Now more and more motorcycle drivers will replace the origianl rubber hose after they have a new motorcycle not only the high quality braking feel but also the beautiful fresh colors .Our nylon inner hose stainless steel brake hose assembly are usually used in family motorcycle,beach vehicles, ATV ,electric bike and Scooter ,and our PTFE inner hose stainless steel braided brake hose assembly is deign for the racing motorcycle and racing auto who have high reqest on the work temperature.
Features
PVC/PU out cover and stainless steel braiding protection provide products with excellent aging resistance, corrosion resistance, high and low temperature resistance, durable quality and fresh colour.
Specification
| Test Items | Test Condition | Standard | Test Results |
| ID | Normal | 3.2mm | 3.15~3.45mm |
| OD | Normal7 | 7.5mm | 7.30~7.70mm |
| Expansion | 1000psi | 0.33cc/ft max. | 0 cc/ft |
| 1500psi | 0.42cc/ft max. | 0 cc/ft | |
| 2900psi | 0.61cc/ft max. | 0 cc/ft | |
| Burst | 4000psi×2min;pressure rated 25,000±10,000psi/min | >7000psi No seepage | >10,500psi |
| Whip | 235~250psi | >35h | >70h |
| Tensile | tensile speed:218±3mm/min | >1446N | 2600N |
| Cold Bend | -45°C ~-48°C× 72h, 3-5s,bending180° | No cracking | No cracking |
| Ozone | 100pphm×70h×40°C, 7X | No cracking | No cracking |
| Impulse | 146°C 1±0.1min at 1600psi+70 | >7000psi No crack | >7500psi |
| Compatibility | 120°C × 70h | >7000psi No seepage | >8800psi |
| Salt Spray | 5%NaCl, 24h,water cleanout in 35°C | No red rust | No red rust |
| Water Aging | Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min | >7000psi; >35h; >1446N | >10250psi;>60h; >2200N |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
|
|
