Supplier of 100% Stainless Steel Braided Brake Lines,Clutch Lines and Brake Accessories !
3 Years
| Ask Lasest Price | |
| Brand Name : | HSBRK |
| Model Number : | no |
| Certification : | DOT |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union,Paypal |
| Supply Ability : | 2000 Pieces/Day |
| Delivery Time : | 10 Days |

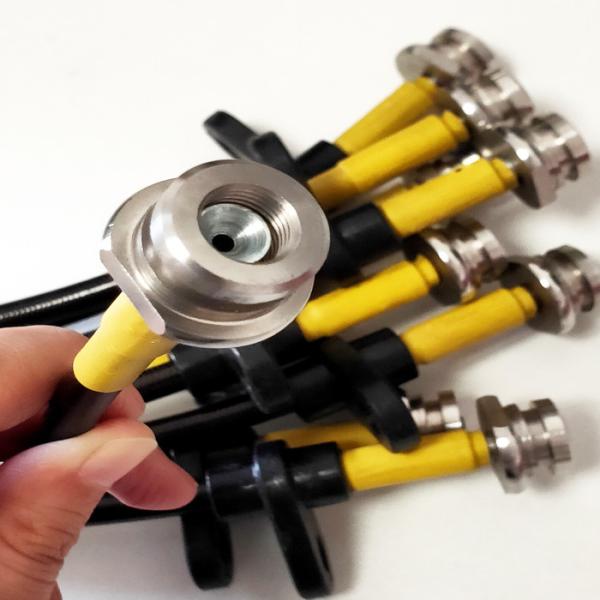

DOT SAE J1401 PTFE Brake Hose Assembly Hydraulic Brake Hose Fitting
Introduce:
Our Stainless Steel Braided PTFE Brake Hose Assembly are made from
high quality 304 grade stainless steel.With a PTFE inner hose it
means our stainless steel braided PTFE brake hose assembly are very
resistant to expansion under pressure and will not degrade from
exposure to brake fluid.Finally our stainless steel braided PTFE
brake hose assembly are then covered in a abrasion resistant PVC/PU
coating to protect the hose against chaffing .The stainless steel
outer braid offers excellent resistance to heat,abrasion and
mechanical damage and wll not absorb oil and fuel into its brading
,thus eliminating weight gain .
Specification:
| Item Code | Inner Hose Material | Stainless Steel Type | I.D(mm) | O.D(mm) | W.P(PSI) | B.P(PSI) | Expansion |
| SAEJ1401-1 | Japan DAKIN PTFE | 304 | 3.2 | 7.2 | 4660 | 14000 | 0.05 cc/ft |
| SAEJ1401-2 | China Brand PTFE | 304 | 3.2 | 7.5 | 4660 | 14000 | 0.05 cc/ft |
Applications:
3.2*7.2mm stainless steel bradided PTFE brake hose assembly used
for racing motorcycle ,racing auto which have high request on work temperature(-70℃ to +260℃) and burst pressure(70Mpa)
FAQ:
1. How long is your delivery time?
Usually SAEJ1401 AN3 Stainless steel wire braided flexible PTFE hydraulic
brake hose we can ship in 5 work days
Brake hose assembly with banjo fitting usually shiped in 10 work days .
2. How can we guarantee quality?
We will send sample for you test first before mass production .And
we will make the pressure test piece by piece under 10Mpa 15seconds
.
3.Could you offer brake hose line part?
Yes.we have our own brake hose fitting CNC machine .We only need
your sample or fittings draws to produce sample and mass
productions for our clients .
4. Could you provide sample?
Yes,we can supply free sample with freight fee within 24 hours .
5. What is your payment term?
T/T,L/C,Paypal, D/A,Western Union
Hengshui Brake Hose Machinery Co. Ltd is a professional manufacturer of brake hose and fittings, located HengShui Citywhere produce 80% brake hoses in the world.Since 2005, HSBRK focused on the development and production of various types of brake hose and fittings .In the passed 17 years ,we master abundant mature technology on the stainless steel wire braiding,PU/PVC coating,brake hose assembly crimping and assembly pressure test.Now we are producing the PTFE brake hose 20,000meters and brake hose assembly 5000 pcs per day .
|
|
