Supplier of 100% Stainless Steel Braided Brake Lines,Clutch Lines and Brake Accessories !
3 Years
| Ask Lasest Price | |
| Brand Name : | HSBRK |
| Model Number : | 1/8" 3.2*7.5mm |
| Certification : | CQC,DOT |
| Price : | US$0.48～0.87/Meter |
| Payment Terms : | L/C, T/T, Western Union,Paypal |
| Supply Ability : | 6000 Meters/Day |
| Delivery Time : | 5-8 Work Days |

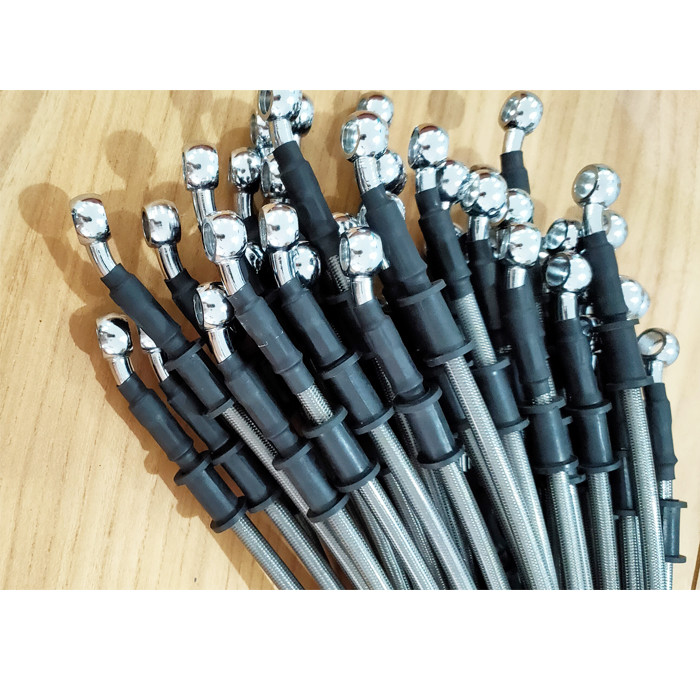

Motorcycle Brake Clutch Braided Nylon Brake Hose Lines Tube Hydraulic Replacement
Introduce:
Our Stainless Steel Braided Nylon Brake Hose Lines are made from high quality 304 grade stainless steel.With a nylon
inner hose it means our stainless steel braided nylon brake hose lines are very resistant to expansion under pressure and will not degrade
from exposure to brake fluid.Finally our stainless steel
braidednylon brake hose lines are then covered in a abrasion
resistant PVC/PU coating to protect the hose against chaffing .The
stainless steel outer braid offers excellent resistance to
heat,abrasion and mechanical damage and wll not absorb oil and fuel
into its brading ,thus eliminating weight gain .

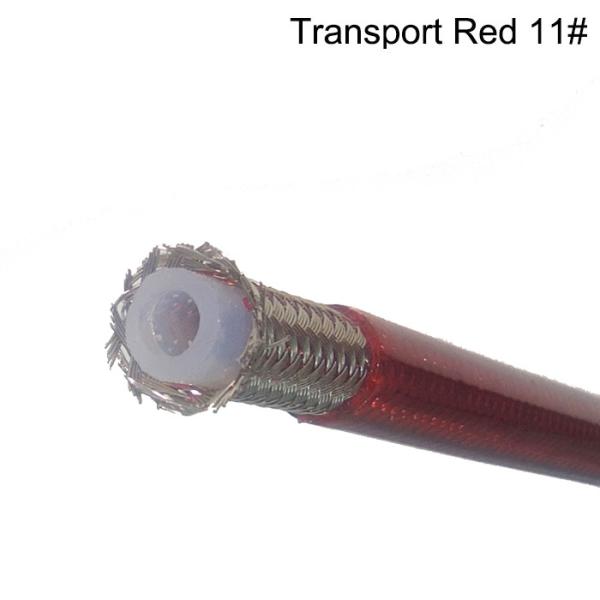

Construction:
| Inner Hose | Nylon Flexible Hose |
| Strength | 304 Stainless Steel Wire |
| Cover | PVC/PU,25 Colours |
Application:
Used for hydraulic brake system .Special for Kart,ATV,Motorcycle, E-Richshaw,E-bike
Feature:
Low Expansion;High and Low temperature resistance;Aging resistant;Corrosion resistant
Sepcification:
| Item Code | Inner Hose Material | Stainless Steel Type | I.D(mm) | O.D(mm) | W.P(PSI) | B.P(PSI) | Temp(℃) |
| SAEJ1401-3 | Modified Nylon | 201 | 3.2 | 7.5 | 4660 | 8000 | -40～80 |
| SAEJ1401-4 | Black Reycled Nylon | 304 | 3.2 | 7.5 | 4660 | 14000 | -40～80 |
| SAEJ1401-5 | White Recycled Nylon | 304 | 3.2 | 7.5 | 4660 | 14000 | -40～80 |
| SAEJ1401-6 | Virgin Nylon | 304 | 3.2 | 7.5 | 4660 | 14000 | -40～80 |
Hengshui Brake Hose Machinery Co. Ltd is a professional manufacturer of brake hose and fittings, located HengShui Citywhere produce 80% brake hoses in the world.Since 2005, HSBRK focused on the development and production of various types of brake hose and fittings .In the passed 17 years ,we master abundant mature technology on the stainless steel wire braiding,PU/PVC coating,brake hose assembly crimping and assembly pressure test.Now we are producing the PTFE brake hose 20,000meters and brake hose assembly 5000 pcs per day .
|
|
