Supplier of 100% Stainless Steel Braided Brake Lines,Clutch Lines and Brake Accessories !
3 Years
| Ask Lasest Price | |
| Brand Name : | HSBRK |
| Model Number : | 1/8" 3.2*7.5mm |
| Certification : | CQC,DOT |
| Price : | US$0.48～0.87/Meter |
| Payment Terms : | L/C, T/T, Western Union,Paypal |
| Supply Ability : | 6000 Meters/Day |
| Delivery Time : | 5-8 Work Days |

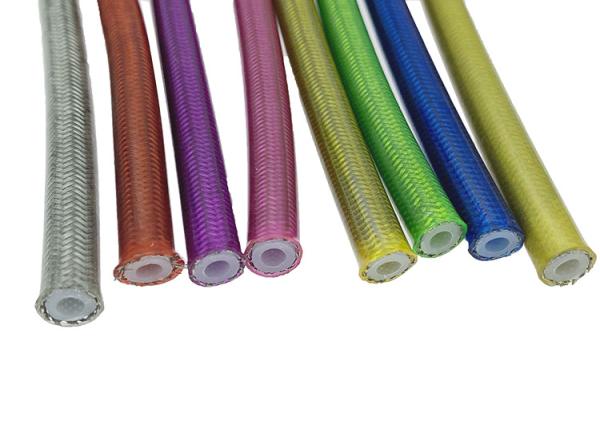

Highest burst pressures Nylon Brake Hose hydraulic Gas Oil Fuel Line Hose
Description:The size of this product is 3.2 mm by 7.5 mm. The structure consists of an inner tube
layer(nylon)reinforced layer(wire braiding one or more layers) and an outer covering layer(nylon with high
elasticity). Highpressure resistance, good softness, smooth inner wall, low resistance of medium flow,
excellent corrosion resistance. Used in hydraulic, pneumatic, high-pressure spraying, engineering
machinery, machine tools, ships,railways, mines, petrochemicals, vehicles, agricultural machinery,
electricity, compressor, air conditioning equipment, aviation, medical equipment equipment, hydraulic
system, pressure measuring equipment.
Construction:
| Inner Hose | Nylon Flexible Hose |
| Strength | 304 Stainless Steel Wire |
| Cover | PVC/PU,25 Colours |
Application:
Used for hydraulic brake system .
Feature:
Commonly used nylon 6and nylon 12.the former is hard nylon with higher working pressure,
the latter is soft nvlon, working pressure is a bit low but more.
Sepcification
| Product Name | Material | Stainless Steel Type | I.D(mm) | O.D(mm) | W.P(PSI) | B.P(PSI) | Temp(℃) |
| Modified Nylon Brake Hose | Modified Nylon lnner Hose | 201 | 3.2 | 7.5 | 4660 | 8000 | -20～80 |
| PA 12 Recycled Black Nylon Brake Hose | PA 12 Recycled Black Nylon lnner Hose | 304 | 3.2 | 7.5 | 4660 | 14000 | -20～100 |
| PA 12 Recycled White Nylon Brake Hose | PA 12 Recycled White Nylon lnner Hose | 304 | 3.2 | 7.5 | 4660 | 14000 | -20～100 |
| PA 12 Raw Material White Brake Hose | PA 12 Raw Material White inner Hose | 304 | 3.2 | 7.5 | 4660 | 14000 | -40～100 |
Hengshui Brake Hose Machinery Co., Ltd. is located within the Beijing-Kowloon, Beijing-Shanghai
and Shide lines, with Shihuang Expressway in the north and Hengshui Lake tourist resort in the south,
with a beautiful environment and superior geographical location.
Adhere to quality first, and constantly improve the production process of brake pipe assembly, invest
a large amount of human and financial resources to buy 100% of the compressor, adhere to 100 % of the
pressure factory, do not allow a pipeline explosion, oil spill,The joint falls off the malignant event, always
alert, the brake tube directly involved in life!Strict use of controlled raw materials, in particular the use of
tubing core, do not use life-threatening safety difference.
|
|
